Mortise Chains - Our Products

CHAIN SETS (Prices in US dollars)
Mortise chain set 1½", fits SwissPRO, Mafell, Protool/Hema
$860
Mortise chain set 2.0", fits SwissPRO, Mafell, Protool/Hema
$960
Mortise chain set 40mm, fits SwissPRO, Mafell, Protool/Hema
$960
Upgrade to hard-chromed chain on any of above sets
$60
CHAINS
Mortise chain, 28 mm x 29 links, standard hardness
$490
Mortise chain, 28 mm x 29 links, hard-chrome-treated
$550
SPROCKETS
4-tooth sprocket (for 1½ and 40 mm bar)
$83
5-tooth sprocket (for 2.0" bar)
$83
BARS
35 mm bar
$422
1½ bar
$422
2.0" bar
$462
40 mm bar
$422
SLOTTER CHAIN/SET for SwissPRO KSF 400 / SG400 / HEMA ZKS-15
6mm chain/bar/sprocket $1230
7mm chain/bar/sprocket
$1250
8mm chain/bar/sprocket
$1310
9mm chain/bar/sprocket
$1330
10mm chain/bar/sprocket
$1350
11mm chain/bar/sprocket
$1370
12mm chain/bar/sprocket
$1390
13mm chain/bar/sprocket
$1450
14mm chain/bar/sprocket
$1490
Additional Slotter Chains
7 mm chain
$530
8 mm chain
$560
9 mm chain
$590
10 mm chain
$610
11 mm chain
$630
12 mm chain
$710
13 mm chain
$730
14 mm chain
$750
LUBRICATION
"Chain Fitness" chain lube penetrates & gels. 500 ml can.
$17
"Chain Fitness" chain lube - 12 x 500 ml cans - save 18%!
$168

Please see "All About Mortise Chains" for background information about these products. See also "How to order" to find out what information we need to provide you with the right equipment for your machine.

Our most popular products are shown at right. We can also supply specialized items and parts, such as the ones below. Please call us for information or special orders at 1-800-350-8176.

Spare links

spare chain linksLinks are available for repairing most chains. They are supplied in packages of two pieces and six pins each. The pins can also be supplied separately.

Hard-chrome plated chain option

We recommend "Hard-chrome Plated" chains. They hold their sharp edge at least twice as long as standard hardened chains.

The hard-chrome plated option actually doubles time between sharpenings.

Sprockets

We produce or supply drive sprockets to guarantee the roundest, quietest chain drive operation. Today's chains are made with precision CNC machines, in order to run rounder, smoother, quieter.

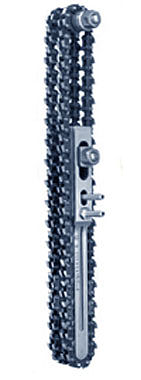

Tandem sets

tandem mortise chain setTandem sets are used to make two symmetrical parallel mortises at a fixed distance from each other, in a single operation.

They are made of two sets specially built for this purpose and a spacer (made of a plate and a ring), mounted between the two guides and two sprockets to obtain the required distance between the two mortises. When ordering, please specify the thickness of the mortises and the distance (thickness of the wood) between them. For example: tandem set 8-10-8x40-A-CL. To avoid misunderstanding, the spacers should also be ordered indicating the three thickness figures: chain - wood - chain.

The tandem sets may also be supplied:

  • with trapezoid profile chains, in order to match the transverse part of the opening with its mounting;
  • mixed, with rectangular and trapezoid chain profile;
  • with round profile chains, to make mortises for grilles, shutters, ladders, and so on.

Device for narrow mortises

device for cutting very narrow mortises"Fitschen knife" is a device for cutting very narrow mortises that are impossible to achieve with normal mortising chains. It is easy to apply to the chain mortising machine as a normal set. Small chisels are applied to the device in order to make mortises 1, 1.25, 1.5, 1.75, 2, 2.25, 2.5, 2.75, 3, 3.25, 3.5, 4, 4.5 and 5 mm wide. The minimum length that can be obtained is 22 mm and the depth is 55 mm.

Chain sharpeners

Chain sharpening machineWe carry chain sharpening machines, especially designed for sharpening mortise and slotter chains with the proper pitch and angle.

If you run a sharpening service, call us at 1-800-350-8176 for proper profile information!
